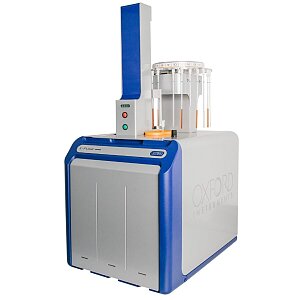

X-Pulse 90
Výrobce: Oxford Instruments
X-Pulse 90 is a revolutionary new benchtop nuclear magnetic resonance (NMR) spectrometer that brings broadband NMR to the benchtop at 90 MHz. X-Pulse 90 is the ideal instrument for flexible chemical analysis, across a wide variety of applications, as it enables investigation of the largest number of nuclei without compromising performance.
X-Pulse 90 optional configurations:
X-Pulse 90 Broadband
Resolution <0.35 Hz (50%) / <15 Hz (0.55%)
- Sensitivity: 240:1 for 1% Ethyl Benzene
- X-Channel: fully freely tuneable from ²⁹Si – ³¹P (38 possible nuclei)
- Pulsed field gradients as standard (>0.5 T/m)
- No cryogens
- Suitable for all levels of users
Standard 5 mm OD NMR tubes
X-Pulse 90 Dual-X
Allows the analysis of up to 4 NMR active nuclei in a single instrument with the selection 2 nuclei from ¹³C, ³¹P, ⁷Li, ²⁹Si, ¹¹B, ²³Na, and more
X-Pulse 90 HF
Single channel benchtop NMR instrument with exceptional sensitivity (320:1 for 1% Ethyl Benzene)
Optional Accessories
Variable temperature option (0°C – 60°C)
Flow NMR option
X-Auto: 25 position auto-sampler
Applications
Agriculture and Food, Chemistry Research, Chemical Manufacturing, Batteries, Pharma, Polymers, Industrial, Teaching NMR
More info here https://nmr.oxinst.com/x-pulse-90
