MQC-R
Výrobce: Oxford Instruments

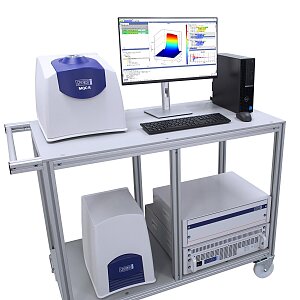

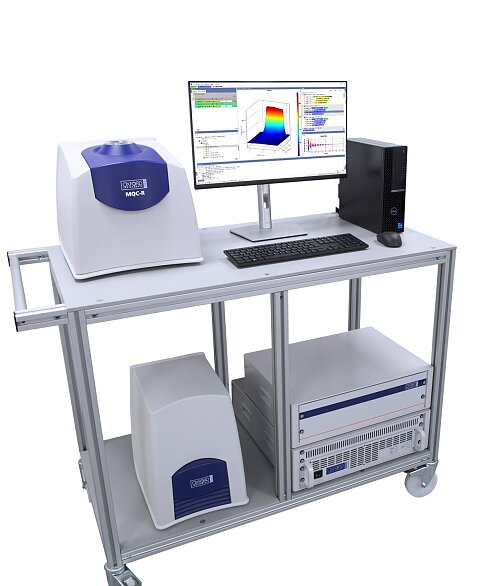

A flexible benchtop time domain NMR research instrument for materials analysis. MQC-R is a highly configurable, benchtop time domain nuclear magnetic resonance (TD-NMR) instrument for flexible analysis of materials across academia and industry. Its modular design provides wide ranging options for varying sample temperature and pulsed field gradient packages to measure diffusion and 1D profiles.
MQC-R characterises important physical properties (e.g. mobility, microstructure and mass transport) and composition (e.g. water and fluorine content) of samples across food science, chemical research, pharmaceuticals, cosmetics, polymers, batteries, construction materials, and many other disciplines. Uniquely, MQC-R is configurable with a range of nuclei (e.g., 1H, 19F) and probe sizes.
Key Features
- Interchangeable probes – Easily changeable probes (e.g. 1H & 19F) for different samples sizes, nuclei and variable temperature
- Wide sample sizes – Suits 10-26mm dia. Probes (1-14mL sample vol.)
- Variable temperature - -5 to 70°C (liquid VT option)
- Pulse field gradient NMR – Measures diffusion, droplet size distribution and 1D profile
- High performance – Sensitive and time-efficient powered by a 23MHz magnet
- Software options – Suit research or industry
Configurable and upgradable – Modular hardware and software allow user specific configurations and upgrades as required
The MQC-R can perform a wide range of experiments to determine many important sample properties. Key application areas include:
Food science and quality control
Polymer research and quality control
Pharmaceutical research
Chemical research
Battery research
Materials research
